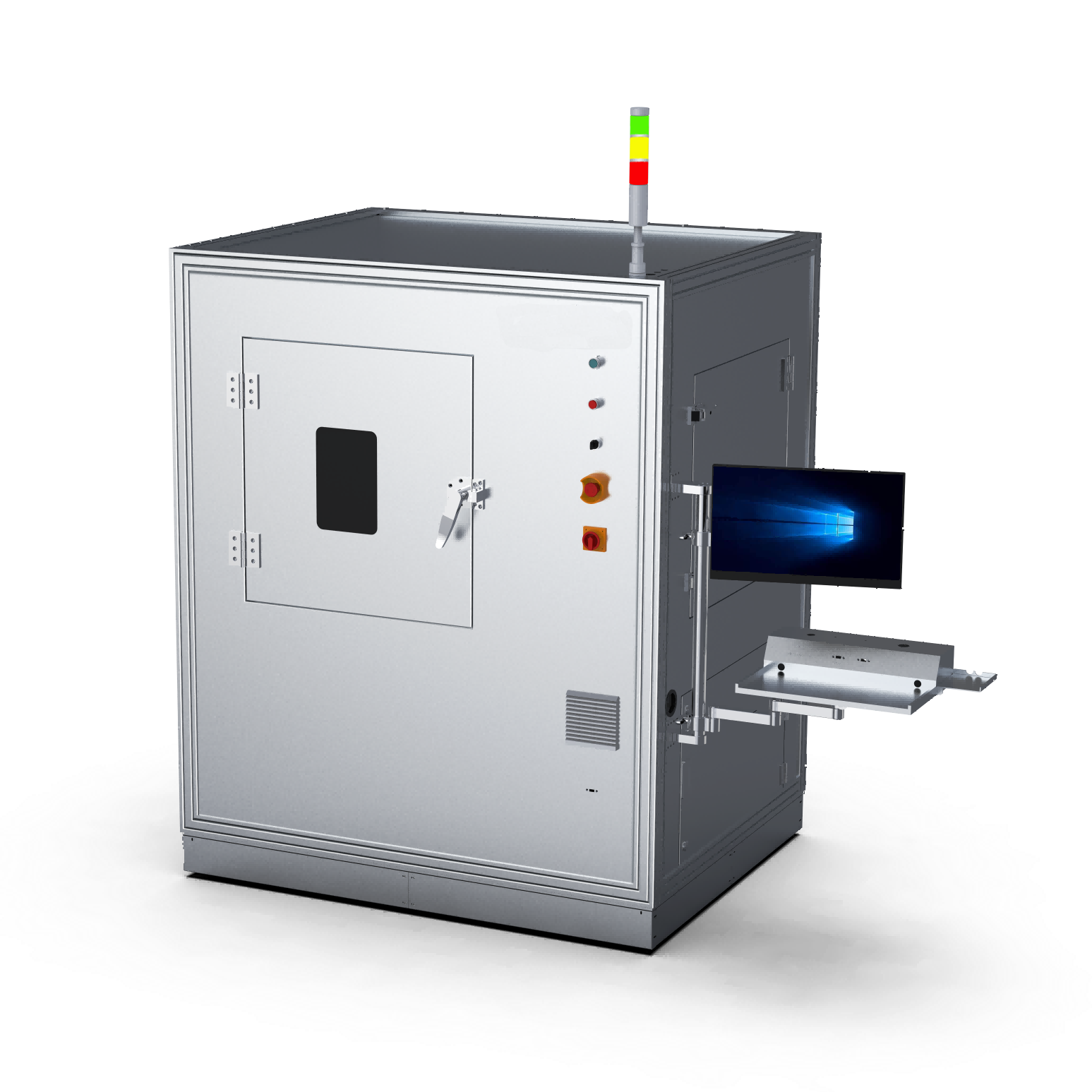

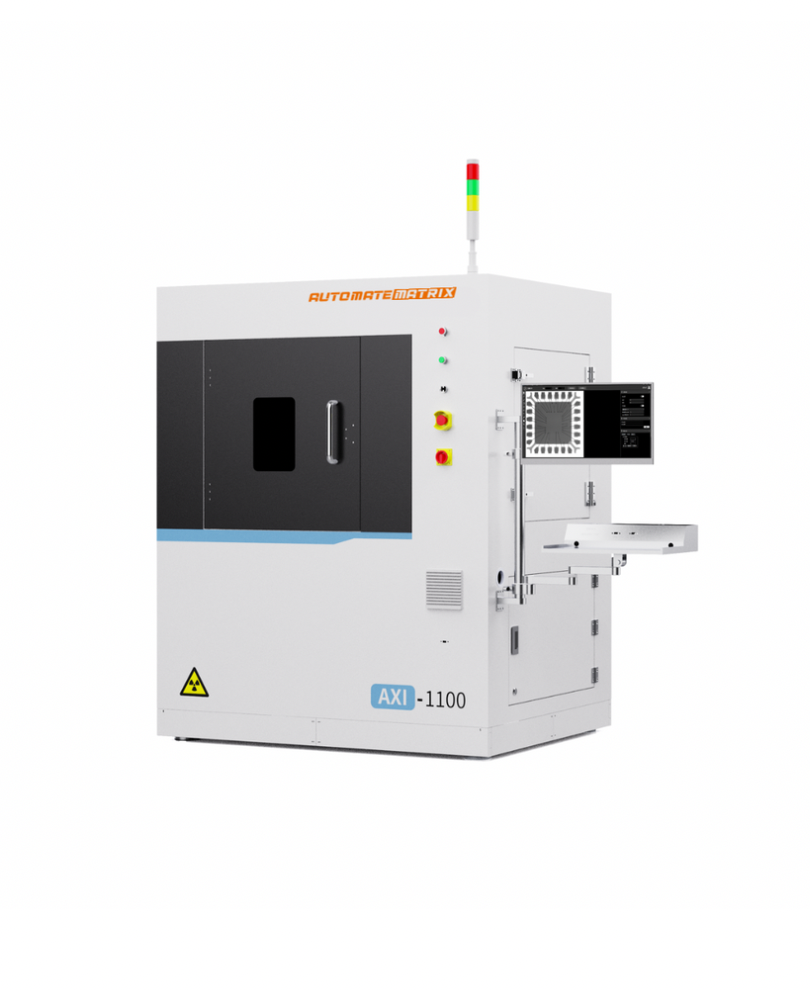

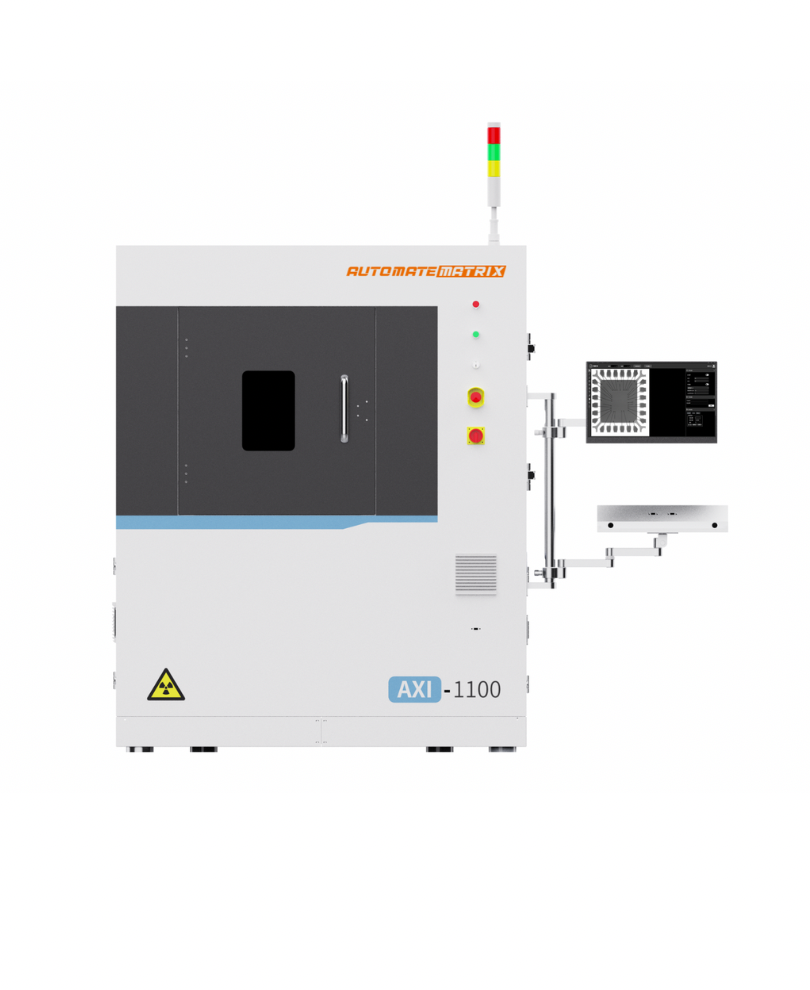

The AXI-1100 series is an offline X-RAY equipment developed by Gongyuan Sanqian for convenient X-ray observation and analysis of the internal structures of various small and medium-sized industrial and non-industrial (food) products. This equipment supports customized functions such as turntable flipping and 45-degree left and right detector swinging, as well as customized fixtures, meeting the inspection requirements of various products. Currently, it supports customization of various models with voltages ranging from 90- 225 kV.
Wideapplication range, suitable for detecting positive and negative electrode
differences in lithium batteries, electronic products with SMT and THT
soldering processes, chips with packaging types such as IGBT modules and
TGV, and castings.
Anoriginal optimized imaging model that enhances imaging quality and
clarity.
Ahigh-resolution digital imaging detector and a 5μm micro-focus X-ray
source provide high-definition images.
Ahigh-definition navigation camera facilitates product positioning.
Optional multi-angle detection with the detector tilted.
