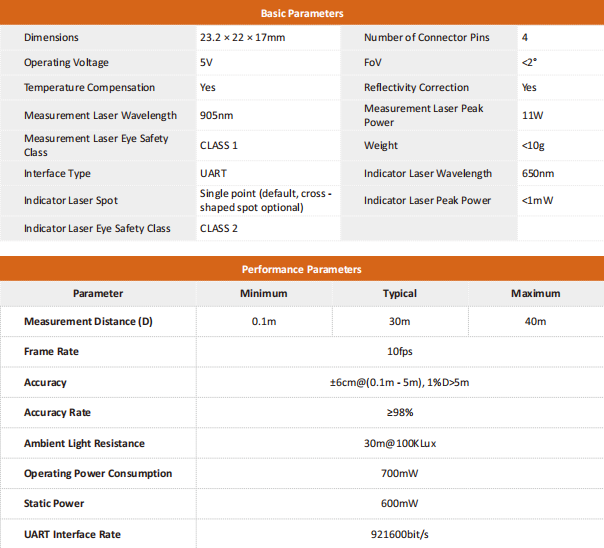

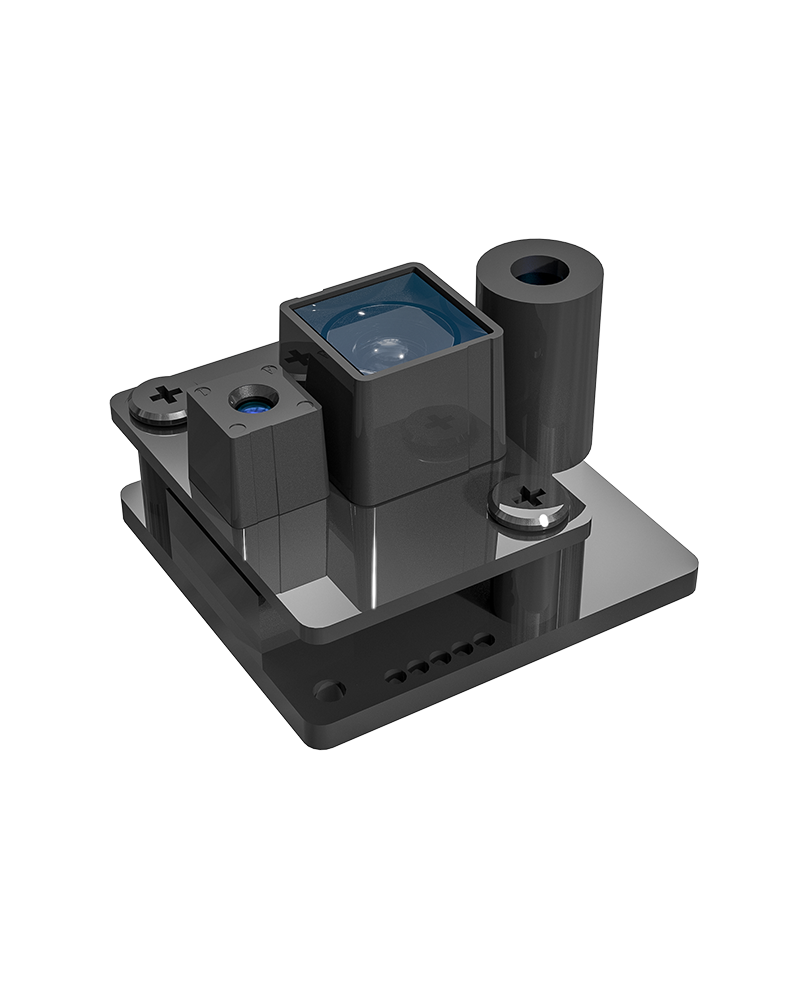

With dimensions of only 23.2×22×17 mm and a weight of less than 10g, it comes with a red light indicator, facilitating integration and use.
- High-Precision Measurement
It can achieve an accuracy of ±6cm within the range of 0.1 - 5m, and 1% of the measured distance in the range of 5 - 40m, meeting the accuracy requirements ofv arious application scenarios.
- Strong Anti-Light Interference
It integrates a time - correlated photon threshold ambient light resistance algorithm, enabling effective measurement at a distance of 30m even under strong light of 100KLux.
- Rich and Practical Functions
It integrates a histogram statistical algorithm to output the positions of double peaks for easy calibration; has a reflectivity correction function to effectively reduce the black - and - white error; the TDC time window is configurable to adapt to different application scenarios; data is stably output according to the configured cycle, with a frame rate of 10fps.
- Highly Integrated and Easy to Integrate
It integrates a power module, is powered by a single 5V power supply, and has a built - in temperature compensation function. It supports the UART interface with a communication rate of 921600bit/s, facilitating integration with other devices.
