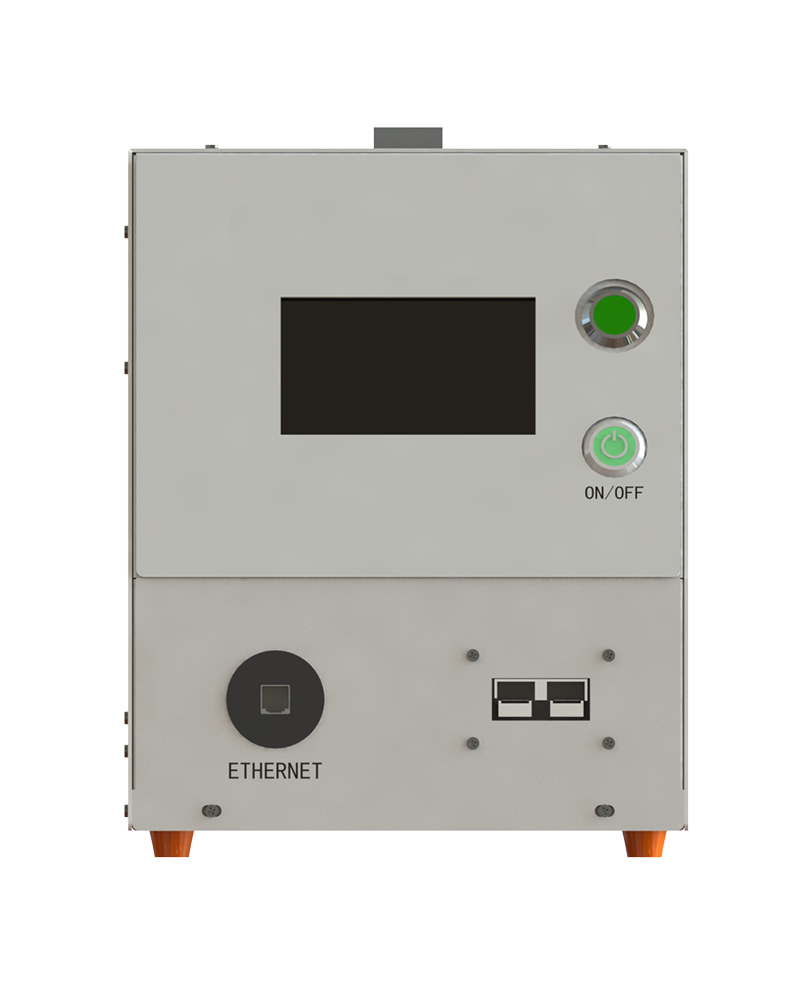

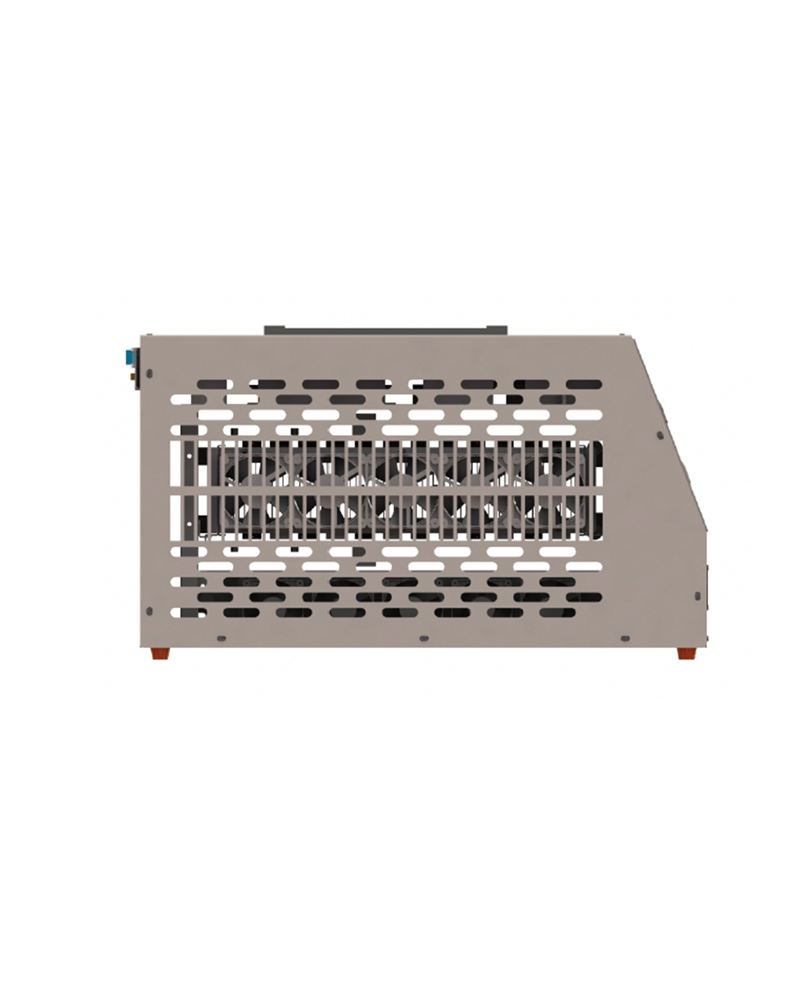

Module Discharger

• Safe and reliable equipment, support reverse connection protection, short circuit protection.

High Current Discharge Discharge current can be up to 50A, for the rapid discharge of large-capacity bat teries. The equipment can carryout discharge equalization, and the equalization voltage bounce is verysma11. Safe and reliable equipment, support reverse connection protection, short circuit protection.

• Simple and convenient operation.

Touch design With a 4.3-inch touch screen display, you can set the discharge parameters through the screen, no need to connect to a PC, simple and convenient operation.

• Equipment protection

Equipment self-diagnosis Equipment with output short circuit protection, battery undervoltage protection, battery overvoltage protection, single cell reverse connection protection, chassis over- temperature protection. Protection; equipment with major faults automatically alarm, buzzer, indicator light alarm prompts.

• Discharge strategy

Discharge strategy According to the target voltage equipment intelligent control of the battery dis-charge. Constant current/constant power discharging, when the difference between the batterymodule voltage and the target voltage is large, the batterywill be discharged with high current, and when the difference is less than a certain value, the battery will be discharged with low current. When the detected difference is less than acer- tain value, small current is used to discharge the battery, and the current of both stages can be set.
