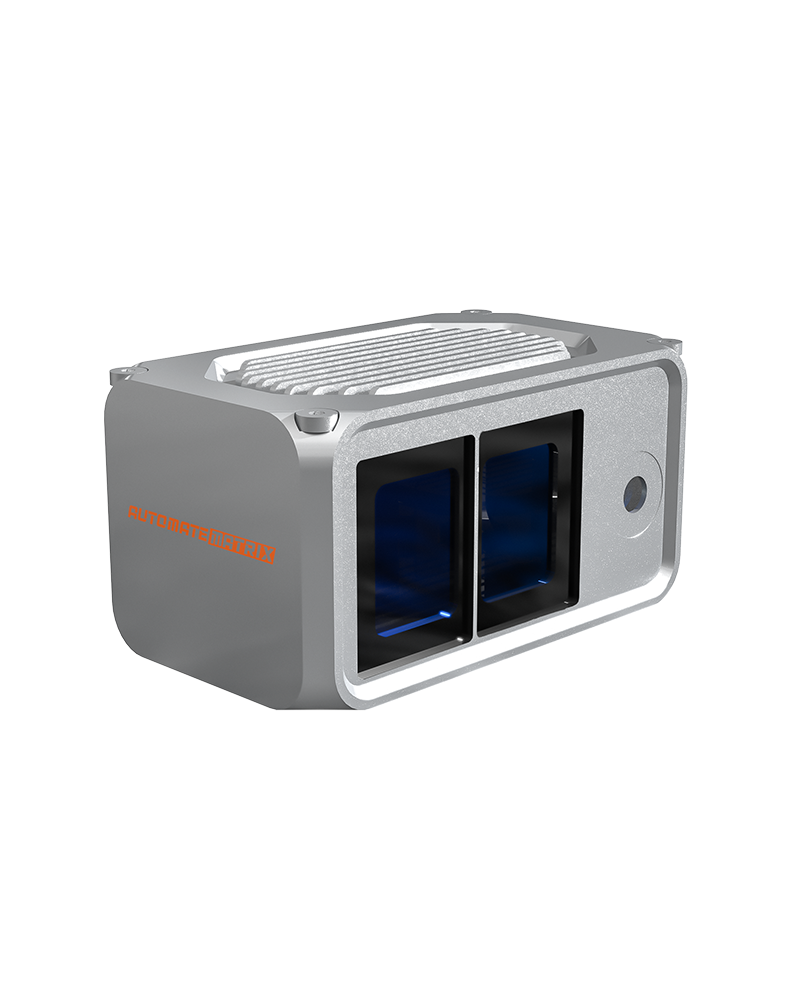

SC-ToF550 Wide FOV iToF 3D Sensor

SC-ToF550 Wide FOV iToF 3D Sensor

Automatematrix's SC-ToF550 is specifically designed for applications that require a wide field of view for 3D data acquisition and RGB image capture, such as intelligent monitoring, panoramic modeling, and large - scale robot navigation. Its unique wide - angle design and excellent performance bring more comprehensive data acquisition capabilities to related  projects.
View full details

Product Advantages

  • Ultra - wide Field of View Coverage

With a wide FOV of 98°×80°, compared with standard FOV sensors, it can cover a larger spatial range, effectively reducing monitoring blind spots and comprehensively improving the integrity of data acquisition.

  • Reliable Environmental Adaptability

The operating temperature range is - 20°C to 60°C, the safety class is class1 (compliant with IEC/EN 60825 - 1:2014), the protection rating is IP66, and it is certified by CE and FCC, demonstrating excellent environmental adaptability and safety reliability.

  • Rich Interfaces and Software Support

Equipped with Gigabit Ethernet ports, CAN interfaces, and external trigger input interfaces, it supports multiple operating systems and a rich SDK. The SDK provides development interfaces for C/C++, Python, C#, as well as support for ROS1 and ROS2 frameworks,
facilitating system integration and secondary development to meet the requirements of different projects.

Scenarios

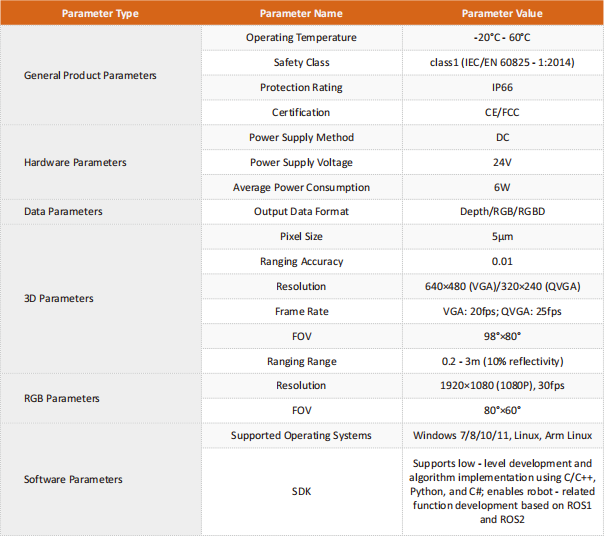

Product Data

Manual PDF
