Wide FOV iToF 3D Sensor

Name: Wide FOV iToF 3D Sensor
Brand: Automate Matrix
Availability: InStock

SC-ToF550

Automatematrix's SC-ToF550 is specifically designed for applications that require a wide field of view for 3D data acquisition and RGB image capture, such as intelligent monitoring, panoramic modeling, and large - scale robot navigation. Its unique wide - angle design and excellent performance bring more comprehensive data acquisition capabilities to related projects.

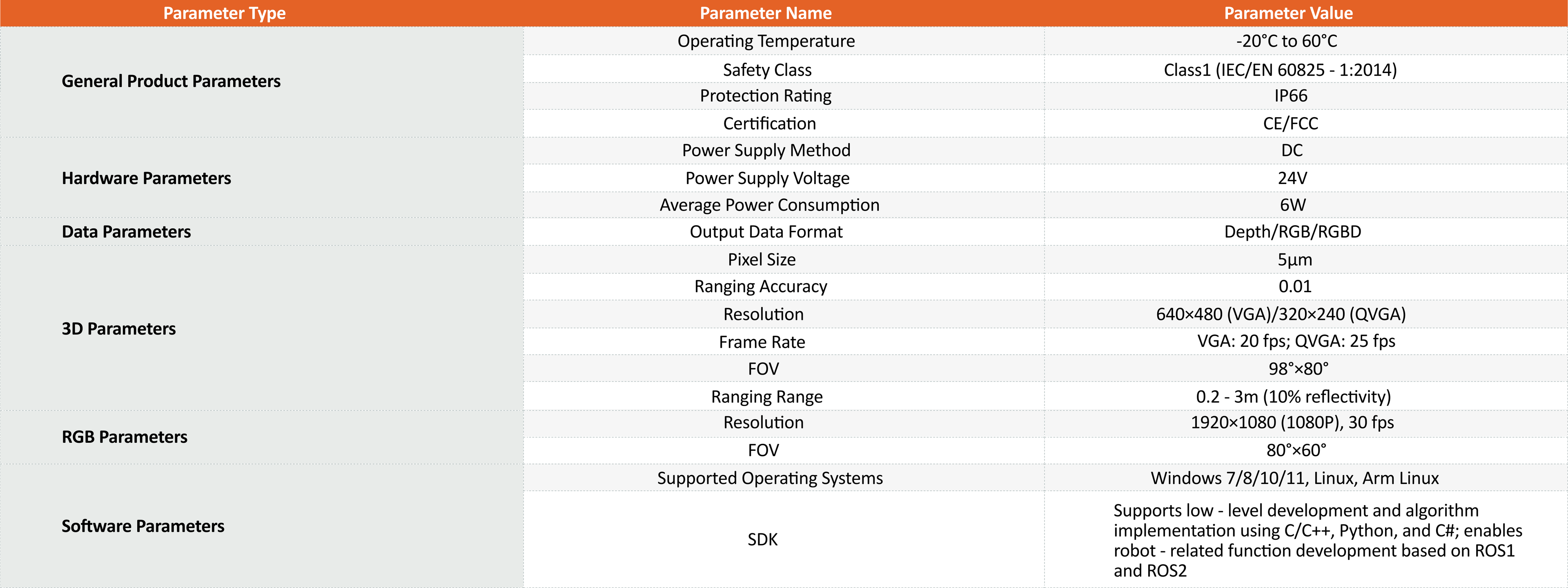

Product specifications

Product Advantages

Ultra - wide Field of View Coverage

With a wide FOV of 98°×80°, compared with standard FOV sensors, it can cover a larger spatial range, effectively reducing monitoring blind spots and comprehensively improving the integrity of data acquisition.

Reliable Environmental Adaptability

The operating temperature range is - 20°C to 60°C, the safety class is class1 (compliant with IEC/EN 60825 - 1:2014), the protection rating is IP66, and it is certified by CE and FCC, demonstrating excellent environmental adaptability and safety reliability.

Rich Interfaces and Software Support

Equipped with Gigabit Ethernet ports, CAN interfaces, and external trigger input interfaces, it supports multiple operating systems and a rich SDK. The SDK provides development interfaces for C/C++, Python, C#, as well as support for ROS1 and ROS2 frameworks,
facilitating system integration and secondary development to meet the requirements of different projects.
